English 5

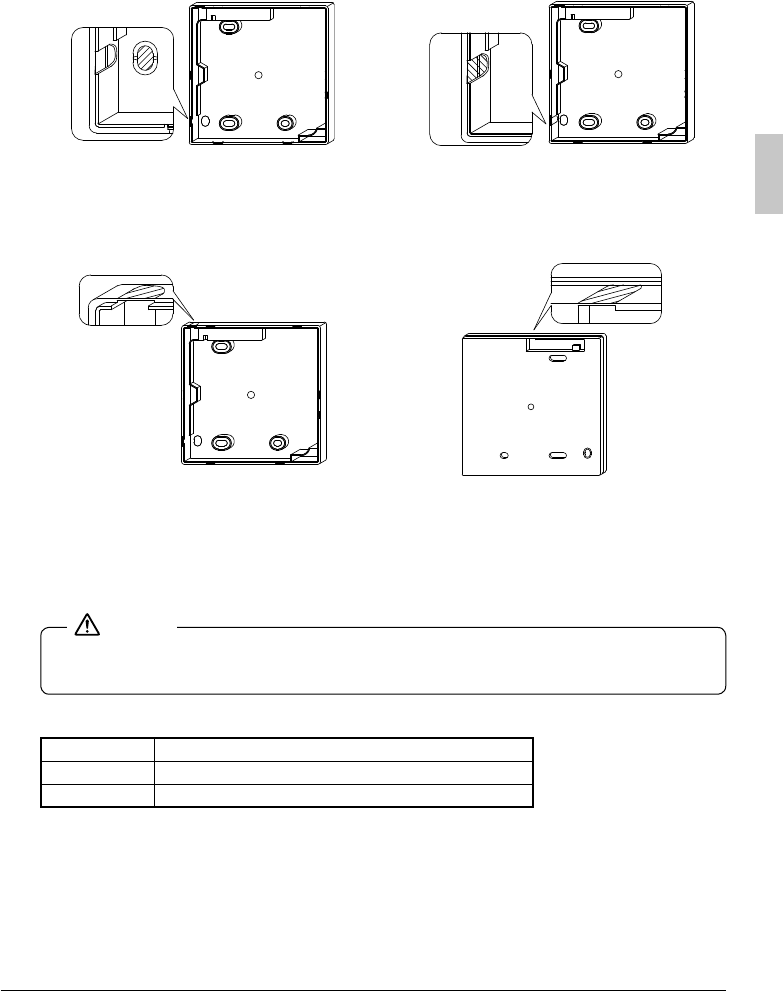

Determine the location where the cabling will enter the 3-4

remote controller (back, left side, top left, top center).

Back outlet3-4-1 Left outlet3-4-2

Cut off resin area (hatched area). Using an appropriate tool, cut the plastic at

the hatched area and remove any remaining

burrs.

Top left outlet3-4-3 Top center outlet3-4-4

Using an appropriate tool, cut the plastic at

the hatched area and remove any remaining

burrs.

Using an appropriate tool, cut the plastic at

the hatched area and remove any remaining

burrs.

Install wiring.3-5

1. Switch box and control wiring are not attached.

Do not touch the remote controller PC-board. 2.

NOTE

Wiring Speciﬁ cations

Wiring Type Non-shielded, 2-conductor, stranded copper cable

Wiring Size AWG-18

Wiring Length Maximum 1640 feet (500m)

01_EN_3P243521-3D.indd 501_EN_3P243521-3D.indd 5 9/13/2012 7:22:17 PM9/13/2012 7:22:17 PM
