English 11

Left button (7)

Used to highlight items to the left of the ●

currently selected item.

Display contents are changed to ●

previous screen per page.

On/Off button(8)

Press once to operate, and press once

again to stop.

Operation lamp(9)

Green lamp lights up during operation. The

lamp will blink if an malfunction occurs.

Cancel button(10)

Used to return to the previous screen. ●

Press and hold this button for 4 seconds or

●

longer to display service settings menu.

LCD (with backlight)(11)

The backlight will illuminate for

approximately 30 seconds by pressing

any operation button.

Service Settings menu

Test Operation

Maintenance Contact

Field Settings

Energy Saving Options

Prohibit Function

Min Setpoints Differential

Outdoor unit AirNet Address

Error History

Indoor Unit Status

Outdoor Unit Status

Forced Fan ON

Switch Main Sub Controller

Filter Indicator

Brush/Filter Ind.

Disable Filter Auto Clean

∗Depending on connected model

● Operate the button while the backlight is illuminated.

When one indoor unit is controlled by two remote controllers (main / sub) only the ﬁ rst ●

controller to be accessed by the user will illuminate it’s backlight.

NOTE

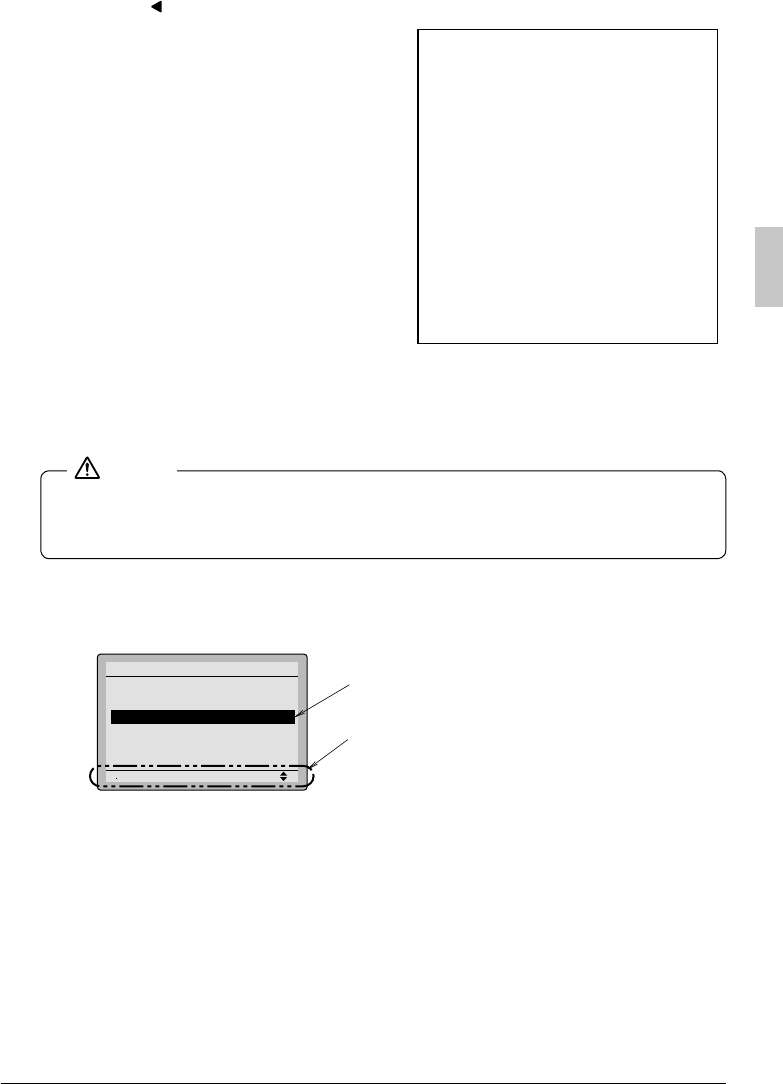

Button menu display descriptions4-2

Setting

Service Settings

Test Operation

Maintenance Contact

Field Settings

Energy Saving Options

Prohibit Function

Min Setpoints Differential

1/3

In the highlighted display (selected items)

setting screen, button operation

descriptions are displayed.

Highlighted display (selected items)

01_EN_3P243521-3D.indd 1101_EN_3P243521-3D.indd 11 9/13/2012 7:22:19 PM9/13/2012 7:22:19 PM
