Daikin ENVi User Manual download pdf (Page 12)

©2012DaikinACSlide12

PUBLIC CONFIDENTIAL

DRAFT

ConnecttheThermostatWiring,SecureDPCAandPowerOn

DaikinIndoorUnit

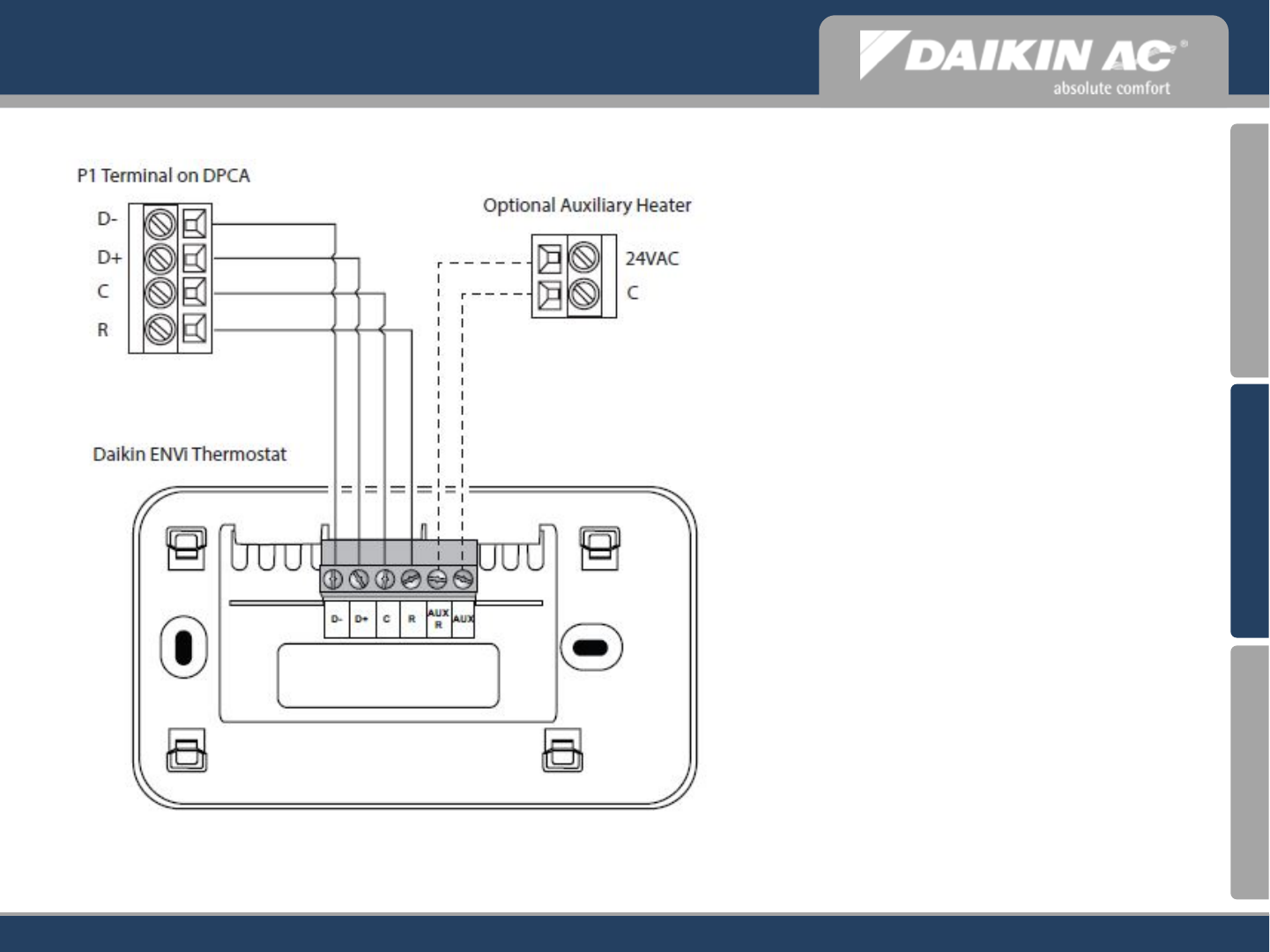

1. Connect the wires as illustrated.

2. Ensure all wiring connections are

secure.

3. Attach the Daikin ENVi thermostat to

the thermostat backplate. Ensure that

the pins on the thermostat align with

the terminal block on the backplate.

Step 4.

Step 5.

Step 6.

Mount the DPCA

After the wiring connections are complete

mount the DPCA using the adhesive sticker

or mounting screws as needed.

Power On Daikin Indoor Unit

After you power on the Indoor Unit:

1. Verify the green LED on the DPCA

has illuminated. Upon verification, re-

attach the DPCA cover.

2. Use the wire ties to secure the wires

as needed.
